NEMA23 Servo Motor 1.8° Step Angle Simple Servo Motor XM57HS-ED

Name: NEMA23 Servo Motor 18 Step Angle Simple Servo Motor XM57HSED
Brand: XM-Motor
Price: 1 USD

Quality NEMA23 Servo Motor 1.8° Step Angle Simple Servo Motor XM57HS-ED for sale

Brand Name : XM-Motor

Model Number : XM57HS-ED

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10000PCS

Price : 1~10 USD/PC

Payment Terms : D/P,T/T,L/C

Supply Ability : 100000PCS/MONTH

Delivery Time : 35DAYS

Packaging Details : CTN OR CUSTOMIZED

Material : black or customized

size : standard

packing : CTN or customized

motor : stepper motor

phase : 2~4

stepper motor : 4 wire stepper motor

high torque : small stepper motor high torque

Construction : PM

Name : Servo Motor

Contact Now

Servo Motor Step Angle) 1.8° (Insulation Resistance) 100 MΩ Min. ,500VDC Shaft Axial Play) 0.08Max. (450g-Load)

Product details

Model: NEMA23 Two-phase simple servo stepper motor -XM57HS-ED

General Specification:

Item	Specifications
Step Angle	1.8°
Temperature Rise)	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength):	500VAC for 1minute
Shaft Radial Play)	0.02Max. (450g-load)
Shaft Axial Play)	0.08Max. (450g-load)
Max. radial force)	75N (20mm from the flange)
Max. axial force	15N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
XM57HS41-4204BFED-0.35M	1.8	41	4.2	0.3	0.7	0.55	4	250	150	0.65
XM57HS56-4204BFED-0.35M	1.8	56	4.2	0.4	1.2	1.1	4	350	280	0.98
XM57HS76-4204BFED-0.35M	1.8	76	4.2	0.6	1.8	1.8	4	600	440	1.1
XM57HS82-4204BFED-0.35M	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
XM57HS112-4204BFED-0.35M	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

Above only for representative products, products of special request can be made according to the customer request.

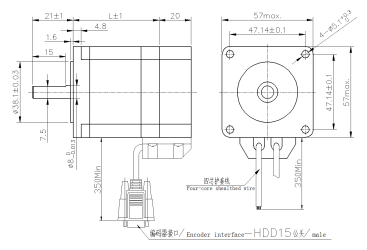

Motor exterior drawing /Dimensions:(Unit=mm)

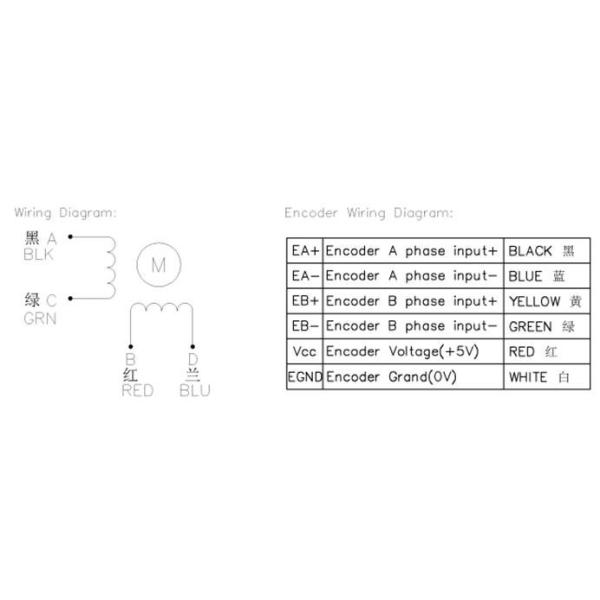

Wiring Diagram:

NEMA23 Servo Motor 1.8° Step Angle Simple Servo Motor XM57HS-ED
